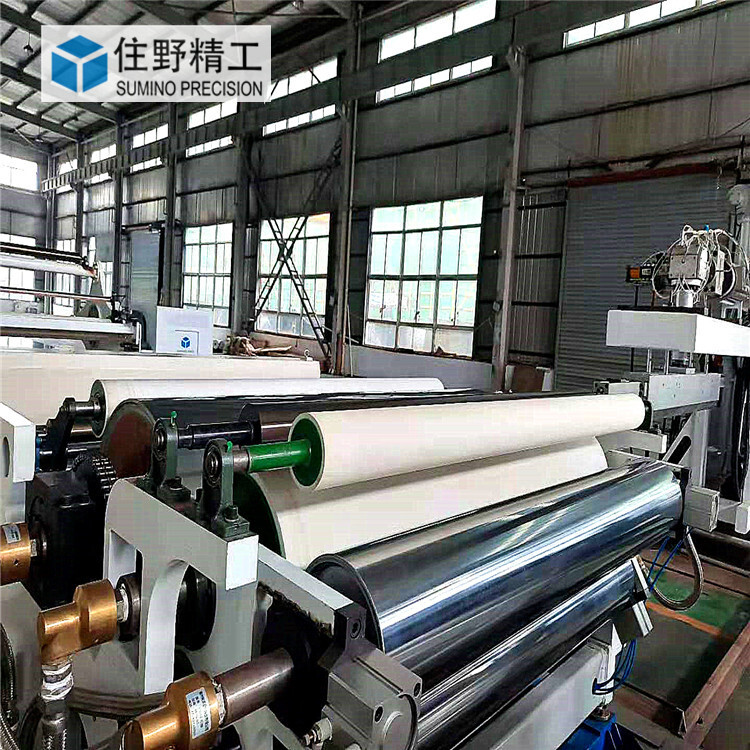

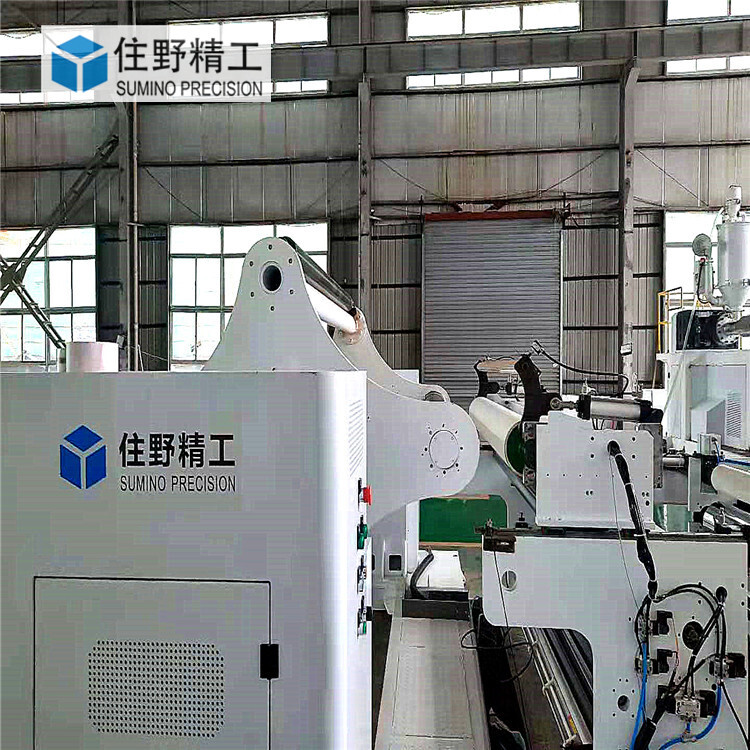

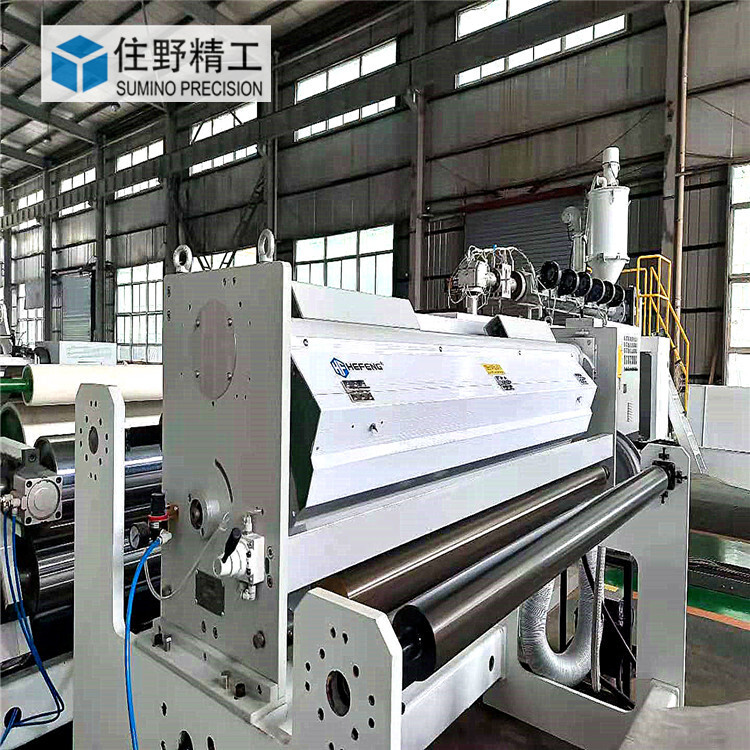

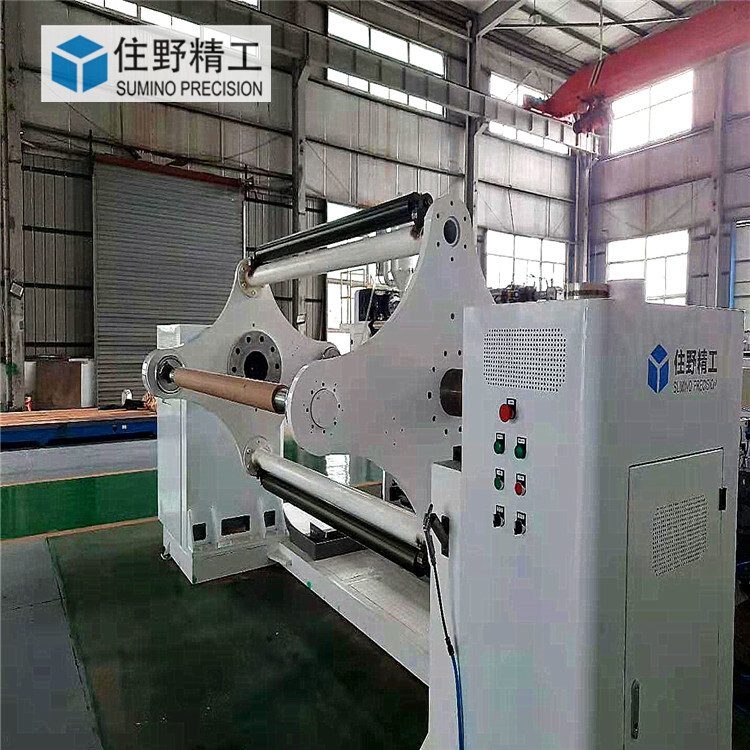

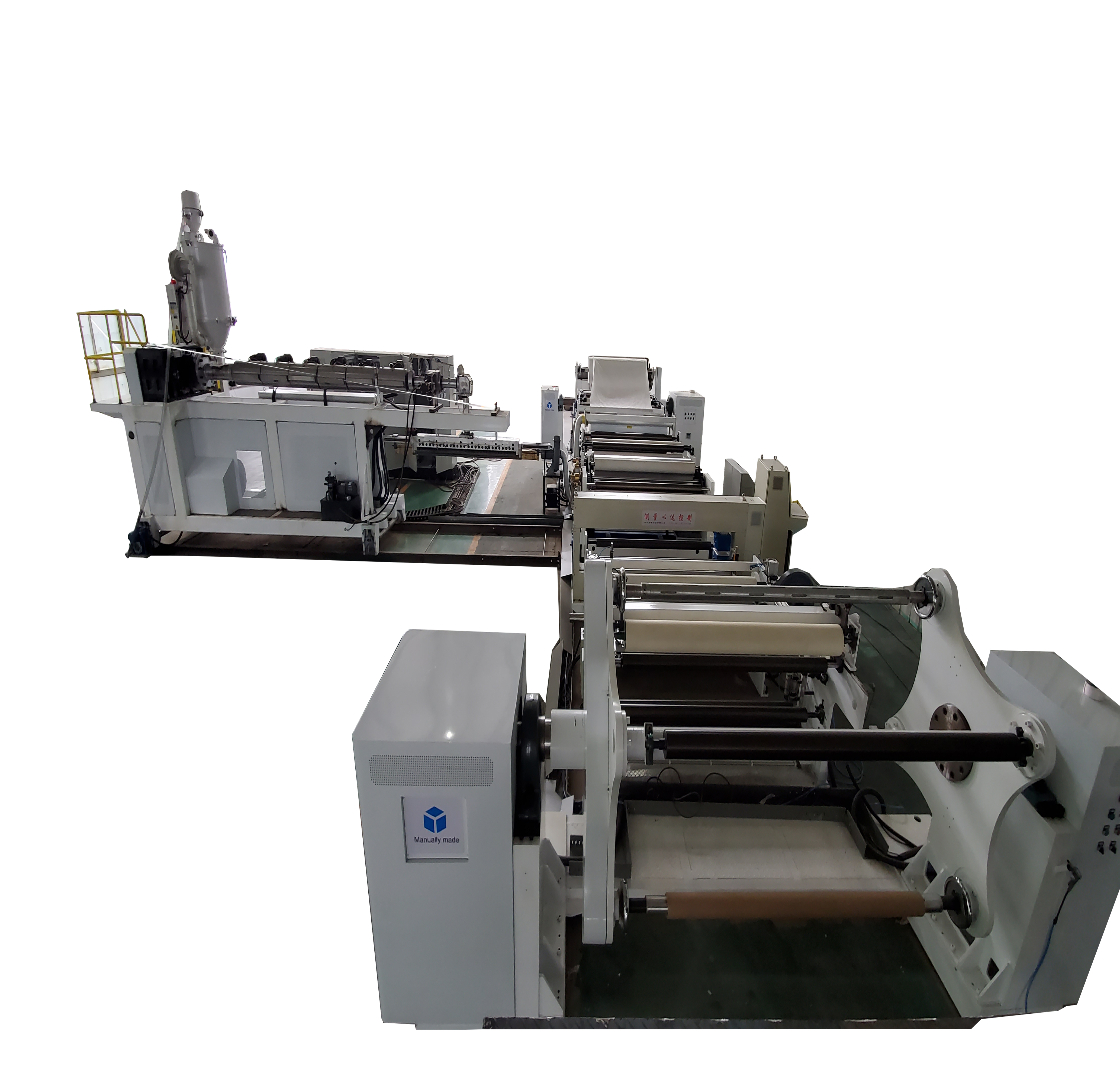

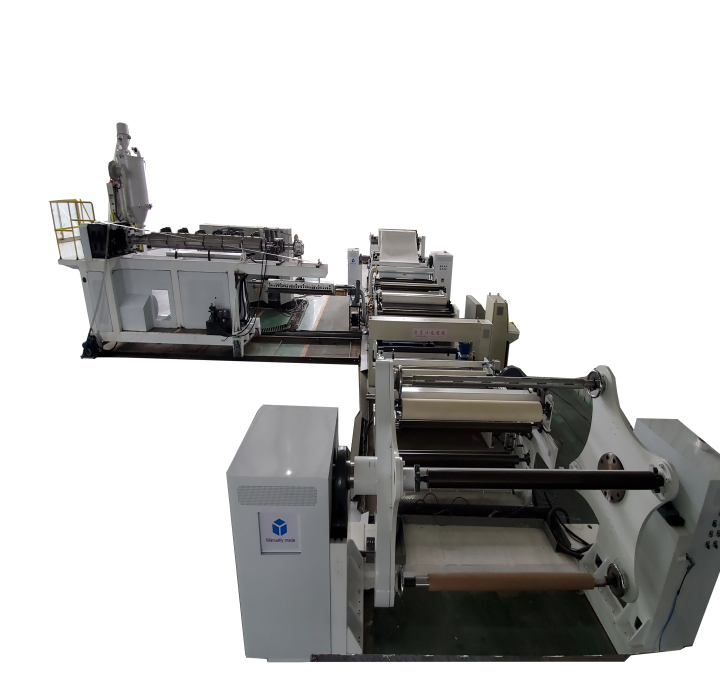

High-Speed PE extrusion film laminating machine/Coating Machine for Paper and Aluminum Foil
stars, based on 0reviews
Products Description
General Overview of High-Speed PE extrusion film laminating machine/Coating Machine for Paper and Aluminum Foil
Hot sale fabric/plastic laminate laminating machine unit, the absorption of foreign advanced technology, is currently a completely advanced model of the double-sided laminating process, the equipment used to need a complete production of double-coated paper, or multi-layer composite materials such as cartons of milk, juice box, beverage box, etc., is an ideal equipment for the production of aseptic packaging materials
Specifications
Mechanical Specifications 1100-2300mm or custom made Speed of coating film 100-150m Suitable coating resin film PA、PBS、PE、PP 、EVA 、PLA and so on Suitable base material EPE、BOPP、BOPET、Paper、EVA、（AL）and so on Width of the coating film 1000-2200mm The thickness of the coating film 0.012~0.1mm Complex cooling roller Φ350mm、Φ500mm、Φ600mm Screw specification （L/D）Φ90：33、Φ100：33、Φ110：:33: Unwinding diameter Φ800-1300mm diameter of auxiliary unwinding Φ600mm Winder diameter Φ800-1300mm
Product Application

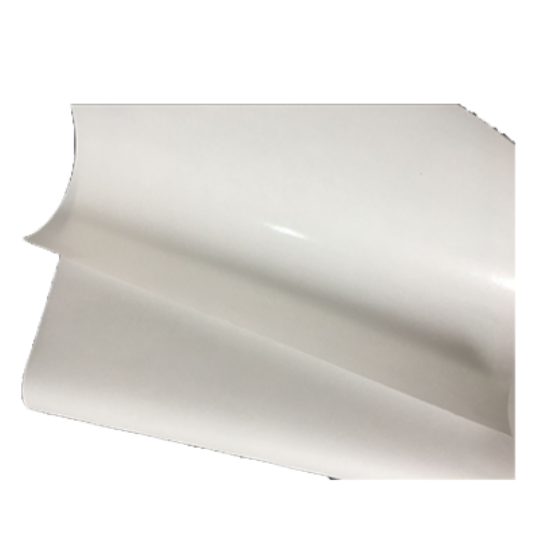

Release Paper Coating
The machine can provide average coating thickness and let the silicon process will be more economical.
Tetra Packs
High resistance, can resist light and air and prevent products become bad; mostly used for liquid packaging, like milk and juice.
The Multi-Layer Lamination Film Packaging
Anti-moist, anti-air, and anti-light, mostly used for food flexible packaging, like potato chip bags and instant noodles packaging.
Product Features
Futures of High-Speed PE extrusion film laminating machine/Coating Machine for Paper and Aluminum Foil
This series of products are mainly plastic film, EVA, Foam, and aluminum foil as substrate, by casting a compound into two layers, three layers (sandwich), widely used in foam packing material. Such as making baby gamepads, car window sunshades, and so on. PLC man-machine interface control, machine, electricity, gas, integrated design; high precision Die head, high efficiency, high speed mixed refine screw, swift filter screen changer, 360o second reel;
This series of Extrusion Lamination Machines can be equipped with a single extruder. Double screw extruder, multi-stage attack realize multi-layer co-extrusion.
Contact Us
Sue
Company: Nanjing Sumino Extrusion Machinery Co., Ltd
Add: Kaituo Road No.11, Jiangning District, Nanjing, China.
Tel: +86 025-51839686 Model/Parameter
Fax: +86 025-51839687
Mob: +86 177 1241 3069
Email: suqian@susumino.com
Whatsapp: +86 177 1241 3069
Add: Kaituo Road No.11, Jiangning District, Nanjing, China.
Tel: +86 025-51839686 Model/Parameter
Fax: +86 025-51839687
Mob: +86 177 1241 3069
Email: suqian@susumino.com
Whatsapp: +86 177 1241 3069
- Condition:
- New
- Plastic Processed:
- PE, PP, HDPE/PP, PE/PP, Lldpe
- Application:
- Film
- Screw Design:
- Single-screw
- Screw Material:
- 38CrMoALA
- Screw diameter (mm):
- 90 mm
- Screw L/D Ratio:
- 30:1
- Screw Speed (rpm):
- 70 rpm
- Showroom Location:
- None
- Place of Origin:
- Jiangsu, China
- Brand Name:
- Sumino
- Voltage:
- 330V or custom made
- Dimension(L*W*H):
- 13000*8300*3200
- Power (kW):
- 110
- Weight:
- 15 KG
- Warranty:
- 1 Year
- Key Selling Points:
- Automatic
- Applicable Industries:
- Manufacturing Plant
- Video outgoing-inspection:
- Provided
- Warranty of core components:
- 1 Year
- Core Components:
- Bearing, Motor, Pump, Gear, PLC, Pressure vessel, Engine, Gearbox, Screw
- Machinery Test Report:
- Provided
- mechanical Specifications:
- 1100-2300mm
- speed of coating film:
- 100-150
- thickness of coating film:
- 0.012~0.1mm
- Effective screw L/D:
- 30:1
- main unwinding diameter:
- 800-1300mm
- Speed of screw:
- 50-150 RPM
- diameter of rewinding:
- 800-1300mm
- Dimensions:
- 13000*8300*3200
- Gross weight:
- AROUND 10 TONS
- Total Power:
- 150 KW
- Marketing Type:
- Ordinary Product
