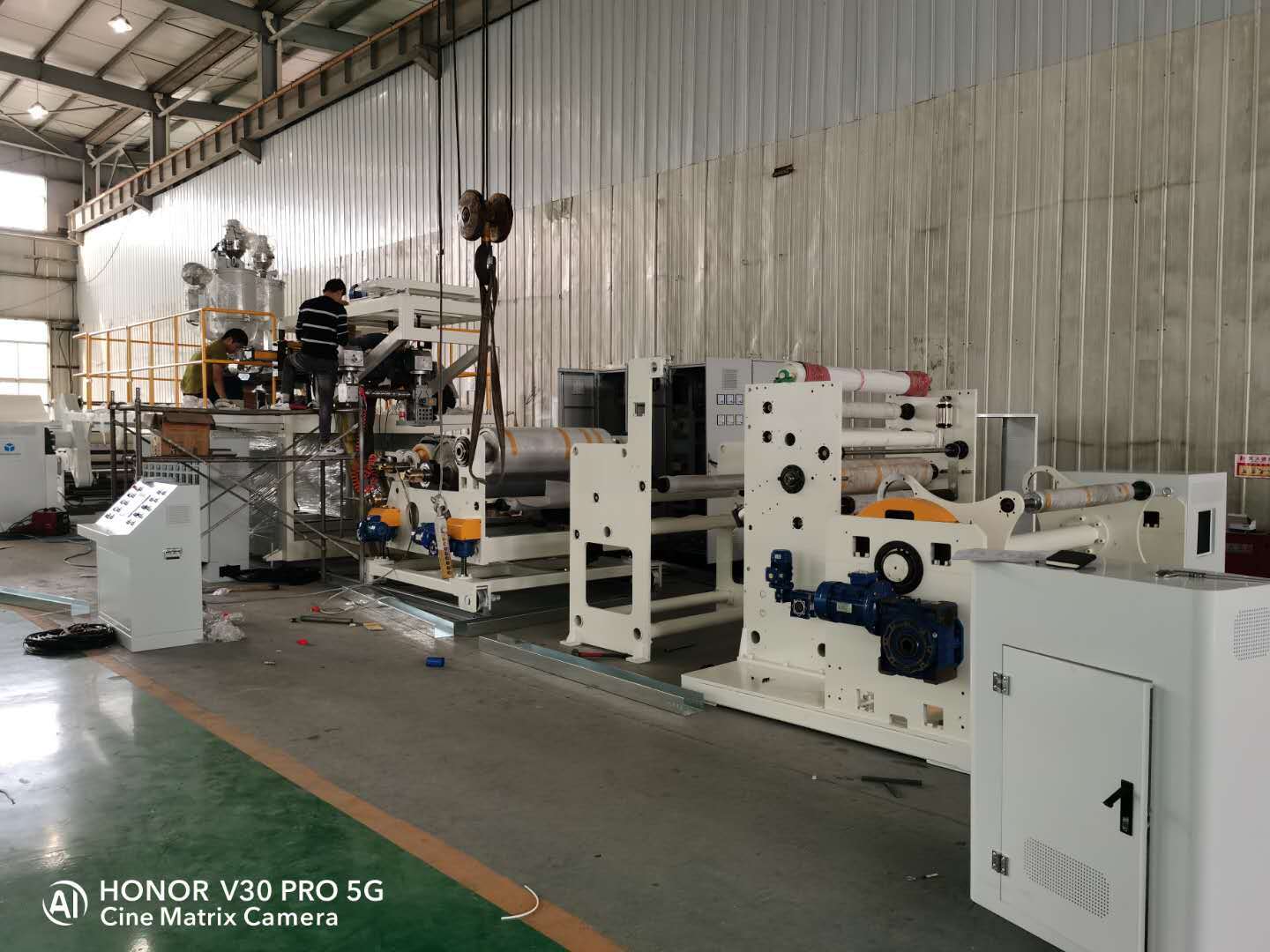

Hot sale PE film and biodegradable PBAT PLA and starch film making machine
Products Description
General Overview of Hot Sale SUMINO Factory direct PE PLA PBS PBAT film casting machine

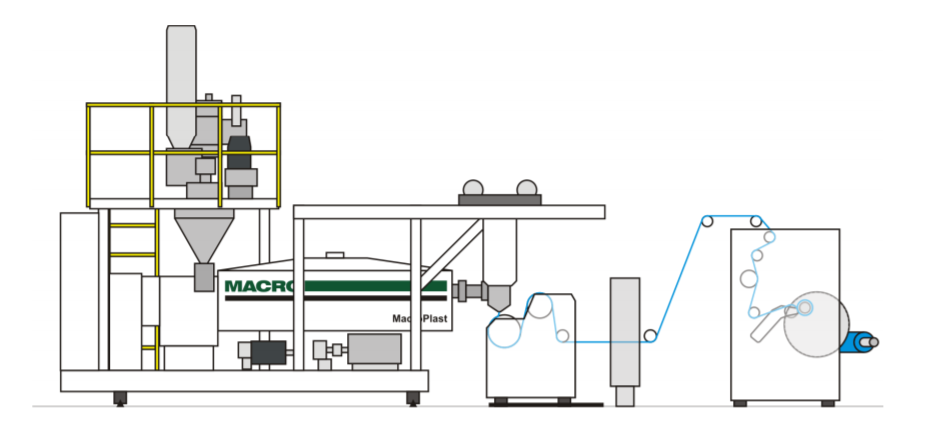

Cast film is a non-stretched, non-oriented flat extrusion film produced by melt casting and quenching. There are two ways of single-layer salivation and multi-layer co-extrusion salivation. Compared with blown film, it is characterized by fast production speed, high output, and excellent film transparency, gloss, and thickness uniformity.
The PE and biodegradable compounds of PBAT and starch film-making machines can not only produce PE cast film but are also compatible with the production of degradable PBAT cast film, which meets the market's demand for environmentally friendly plastics, allowing manufacturers to complete a transition from PE film to degradable film.
Key Features of PE PLA PBAT PBS film casting machine

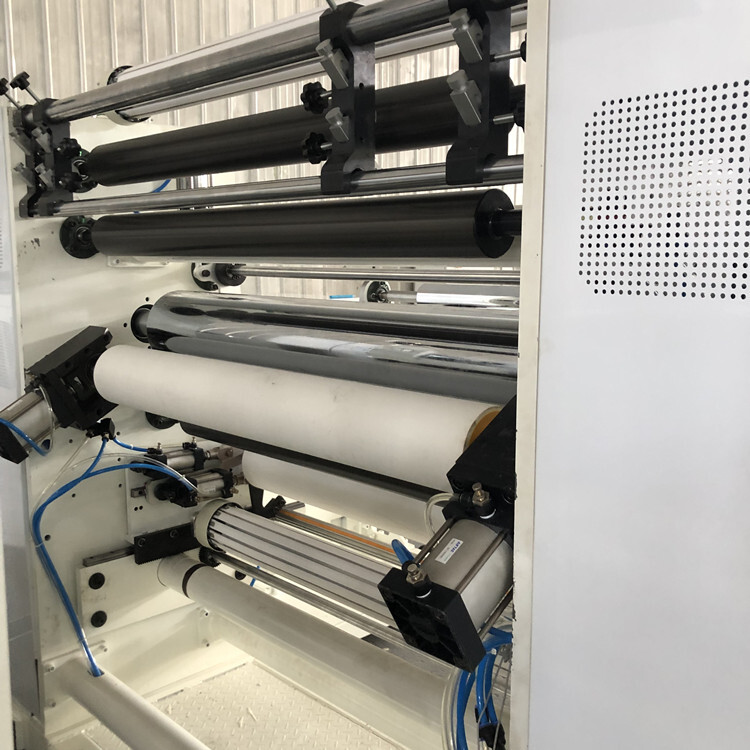

Attractive roll production
Parameters
Model: |
1000mm-SJφ80mm-SJφ60mm |
Product structure: |
(2 types) double layers structure |
Product thickness: |
0.01-0.10mm |
Final product width: |
custom made |
Adapt to materials: |
PE PP PLA PBAT and so on |
Maximum extrusion volume: |
200Kg/h |
Installation capacity: |
150KW |
Production energy consumption: |
80KW/h |
Machine weight: |
About 10 tons |
Rewinding load-bearing design: |
500Kg |
Maximum mechanical line speed: |
5-160m/min |
Product Application
SUMINO cast film has excellent heat-seal performance and excellent transparency. It is one of the main packaging composite substrates. It is used to produce high-temperature cooking film, vacuum aluminum film, etc., and the market is extremely promising. PBAT PLA CORN STARCH compounding film is exco-friendly and It not only has good ductility, elongation at break, heat resistance, and impact resistance but also has excellent biodegradability. PBAT has good film-forming properties. It is usually blended and modified with PLA resin to make end products, which can be used for plastic packaging films, agricultural mulch films, disposable appliances, etc. Under composting conditions, it can be degraded by microorganisms into carbon dioxide and water, and the degradation process will not produce substances harmful to the environment.
- Condition:
- New
- Plastic Processed:
- PE, PVC, PA, EVA, HDPE, PE/PP, Lldpe, LDPE, TPE
- Application:
- Film
- Screw Design:
- Single-screw
- Screw Material:
- 38CrMoAlA
- Screw diameter (mm):
- 80
- Screw L/D Ratio:
- 30:1
- Screw Speed (rpm):
- 1480 rpm
- Showroom Location:
- None
- Place of Origin:
- Jiangsu, China
- Brand Name:
- SUMINO
- Voltage:
- 380V 50HZ 3P, or customized
- Dimension(L*W*H):
- 15*6*3 m
- Power (kW):
- 150
- Weight:
- 15 KG
- Warranty:
- 1 Year
- Key Selling Points:
- Automatic
- Applicable Industries:
- Manufacturing Plant
- Video outgoing-inspection:
- Provided
- Warranty of core components:
- 1 Year
- Core Components:
- Motor, Pump, Gear, PLC, Gearbox, Screw, Motor, Pump, PLC, Gearbox
- Machinery Test Report:
- Provided
- Name:
- PE and biodegradable compounds of PBAT and starch film making machine
- OEM:
- Offer
- Final product:
- plastic film
- Deliver:
- 90 days
- Control:
- PLC
- Power:
- 150kw
- Maximum mechanical line speed:
- 5-60m/min
- Product thickness:
- 0.02-0.10mm
- Production energy consumption:
- 80KW/h
- Marketing Type:
- New Product 2020
