This series of Extrusion Lamination Machine can be equipped with a single extruder. Double screw extruder, multi-stage attack realize multi-layer co-extrusion.
sue@suminomachinery.com
WhatsApp：+86 17712413069
SUMINO
Bio plastic PLA PBAT PBS and kraft paper coating machine paper poly coating machine
stars, based on 0reviews
Products Description

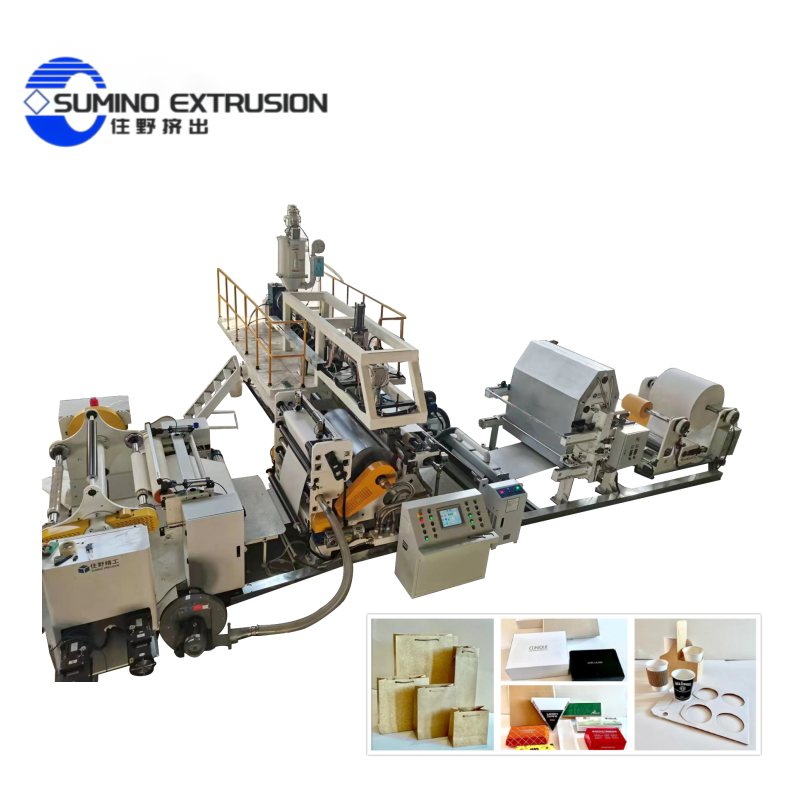

Bioplastic PLA PBAT PBS and kraft paper coating machine paper poly coating machine
Bioplastic PLA PBAT PBS and kraft paper coating machine paper poly coating machine | ||
Mechanical Specifications | 800-2300mm or custom made | |
Speed of coating film | 100-150m | |
Suitable coating resin film | PA、PBS、PE、PP 、EVA 、PLA and so on | |
Suitable base material | EPE、BOPP、BOPET、Paper、EVA、（AL）and so on | |
Width of the coating film | 1000-2200mm | |
The thickness of coating film | 0.012~0.1mm | |
Inaccuracy thickness of coating film | ≦±5% | |
Complex cooling roller | Φ350mm、Φ500mm、Φ600mm | |
Screw specification | （L/D）Φ90：33、Φ100：33、Φ110：:33: | |
Main unwinding diameter | Φ800-1300mm | |
Diameter of auxiliary unwinding | Φ600mm | |
Diameter of rewinding | Φ800-1300mm | |

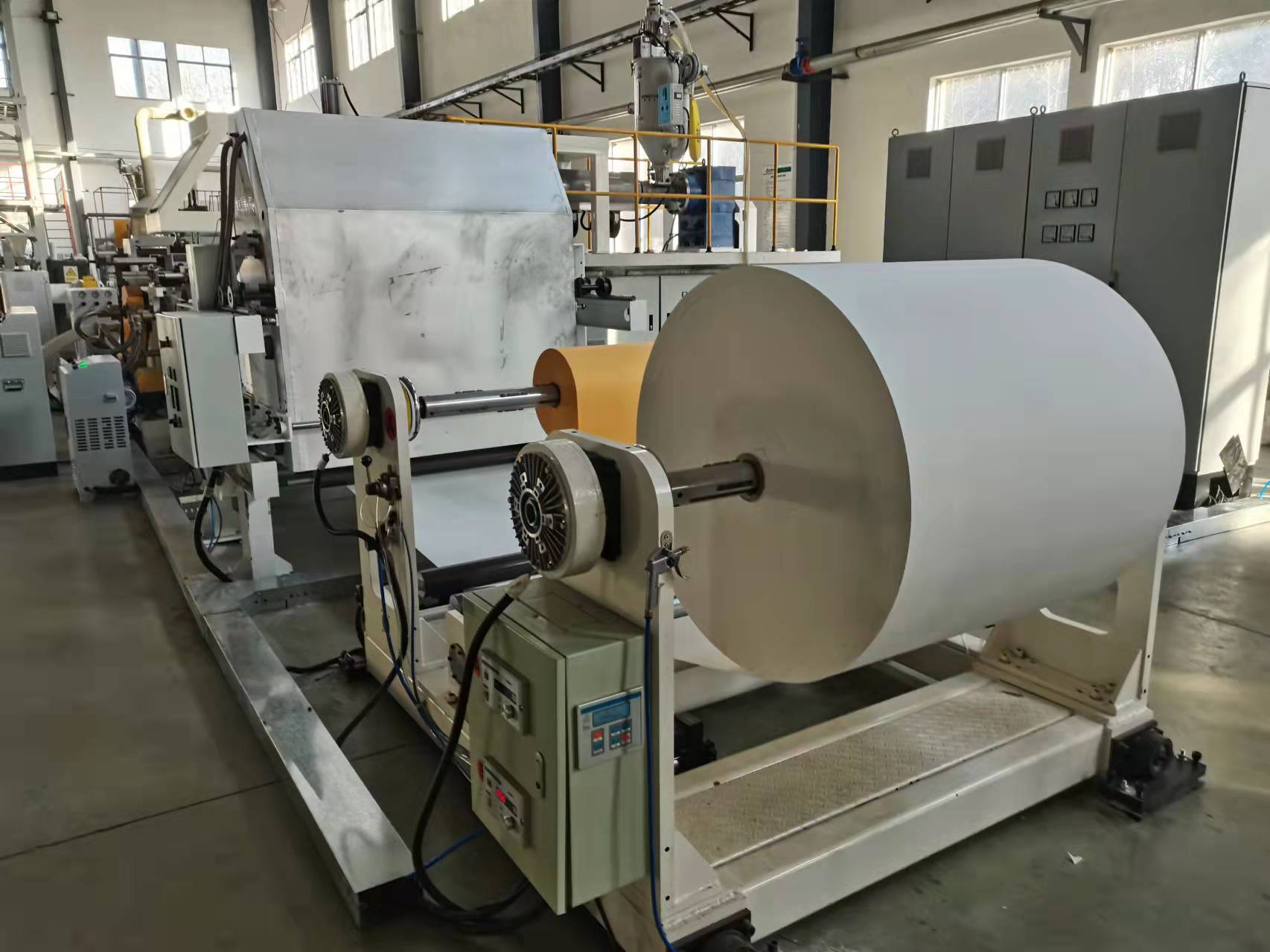

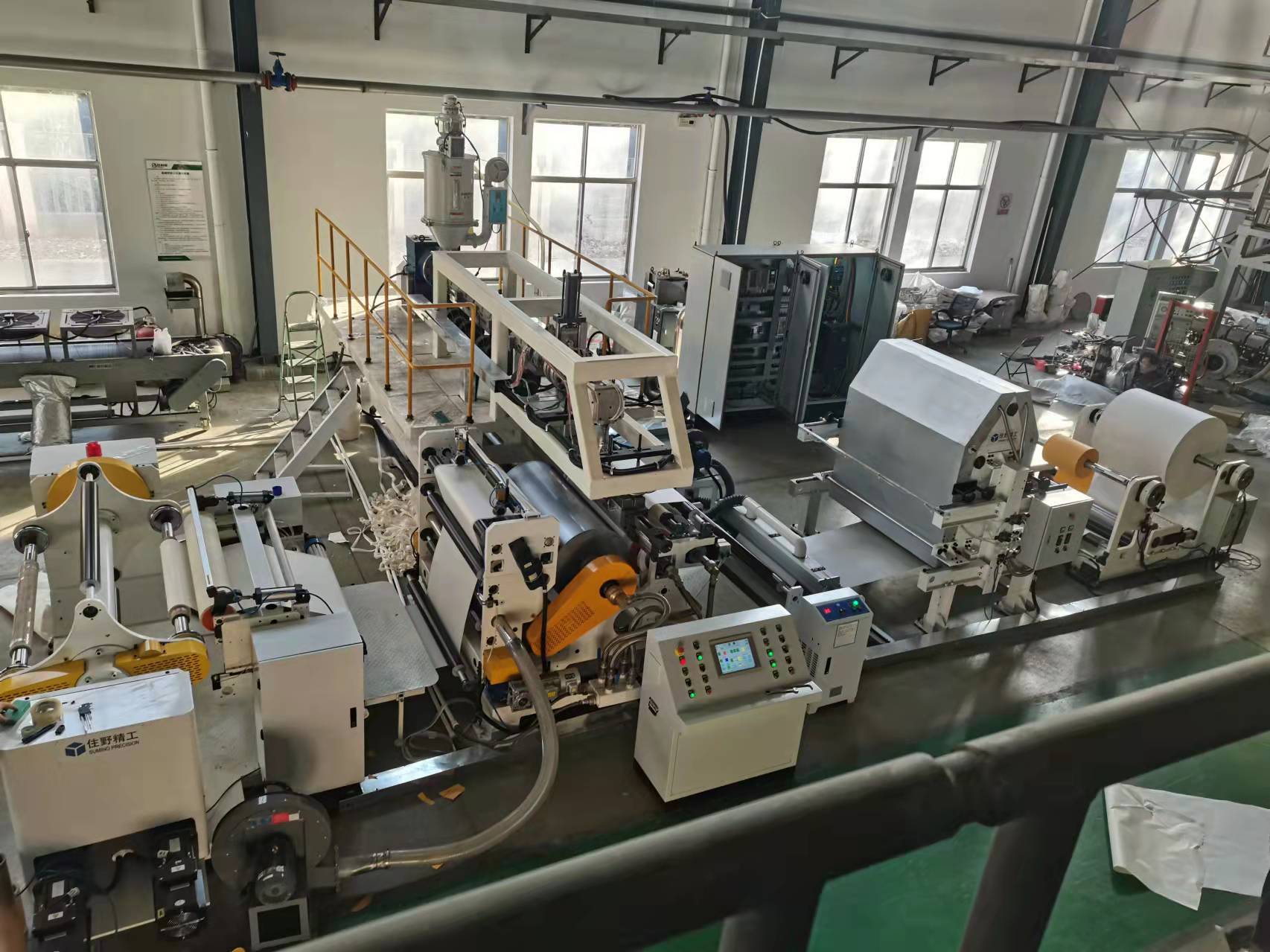

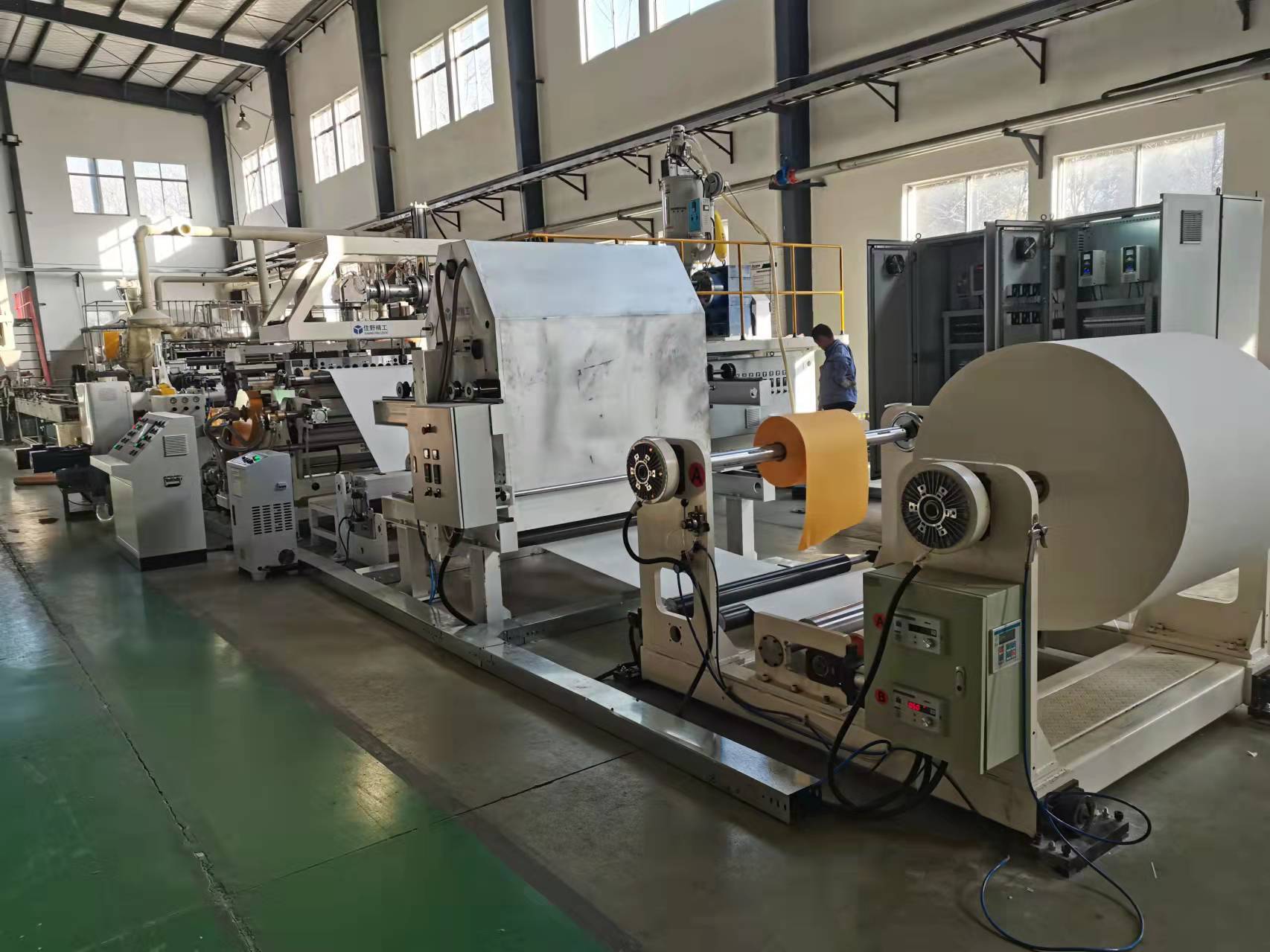

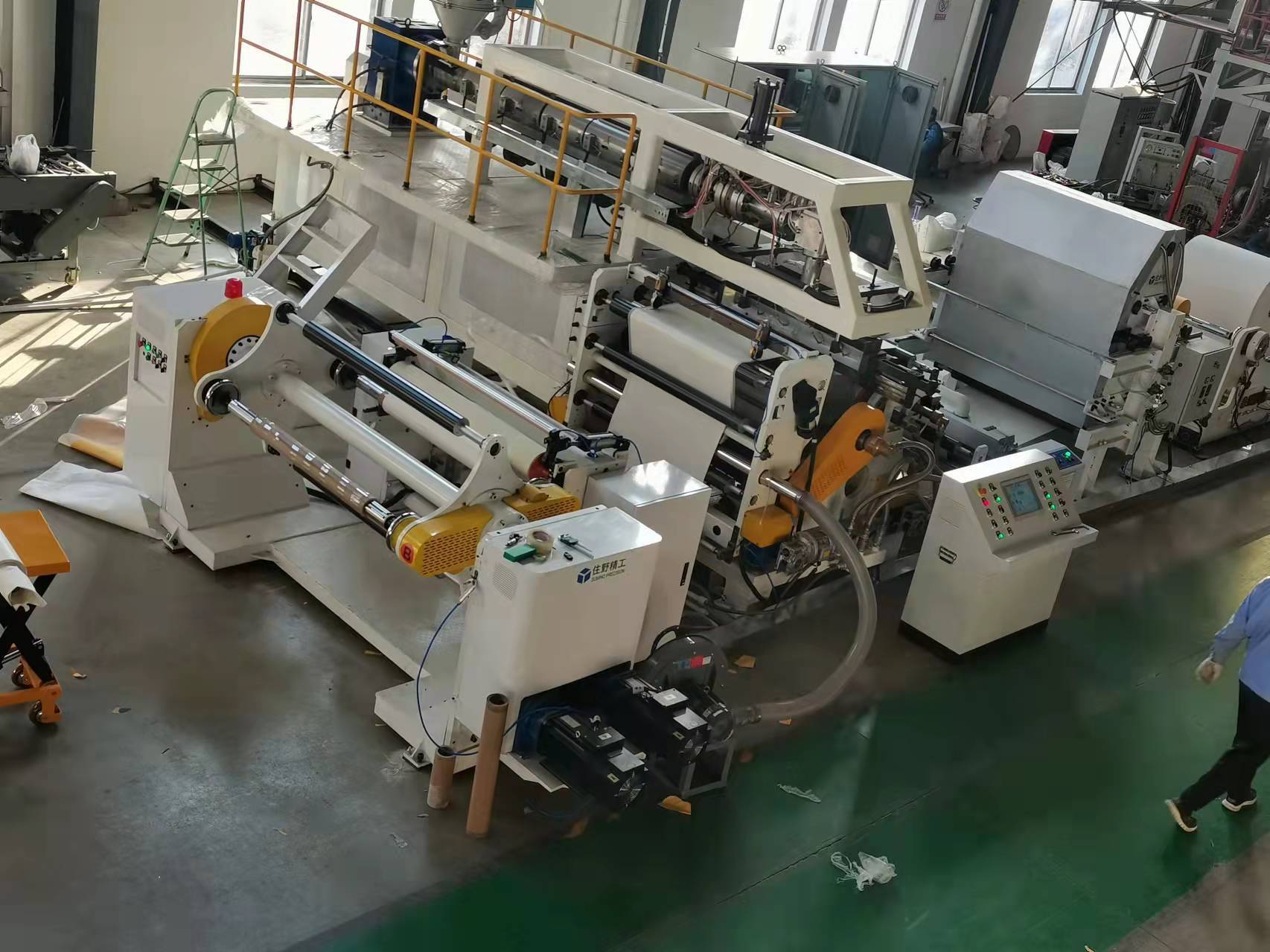

Details Images
Bioplastic PLA PBAT PBS and kraft paper coating machine paper poly coating machine
Sumino High-Speed Co-Extrusion Coating and Laminating Machine, the absorption of foreign advanced technology, is currently a complete advanced model of the double-sided laminating process, the equipment used to need a complete production of double-coated paper, or multi-layer composite materials such as carton of milk, juice box, beverage box, etc., is an ideal equipment for the production of aseptic packaging materials.
Product Application
Release Paper Coating
Machine can provide average coating thickness and let silicon process will be more economics.
Tetra Packs
High resistance, can resistance light and air prevent products become bad; mostly use for liquid packaging, like milk and juice.
The Multi-Layer Lamination Film Packaging
Anti-moist, anti-air and anti-light, mostly use for food flexible packaging, like potato chips bags and instant noodles packaging.
Woven fabric laminating
PE coated Metallized PET Film & Aluminum Foil
Paper laminating
Product Features
Bioplastic PLA PBAT PBS and kraft paper coating machine paper poly coating machine
This series of products are mainly plastic film,EVA,Foam,aluminum foil as substrate, by casting a compound into two layers, three layer (sandwich), widely used in foam packing material . Such as making baby game pad, car window sunshade and so on. PLC man-machine interface control, machine, electricity, gas, integrated design; high precision Die head, high efficiency, high speed mixed refine screw, swift filter screen changer, 360o second reel;
Company Profile
Clients Show
FAQ
Q1: What is the guarantee of the machine?
A1: The guarantee period of our machine is 12 months after the machine is installed well in the buyer's factory;
Q2: What package do you use for the machine?
A2: Painted the machine with anti-corrosion oil, and then covered it with plastic film, and then packed into a wooden case or fixed onto a wooden pallet as per clients' requirements, or shall be loaded into a container with film packing. After fixing all machines, we will use a drying agent to keep the container inside dry.
Q3: Do you have an instruction manual to guide us if I buy the machine?
A3: Yes, we supply a detailed user manual for your reference. PLS read it carefully for guidance. If there is still a problem that could not be solved, PLS contact us, we are ready to help you anytime.
Q4: What is your service to overseas clients?
A4: We supply perfect overseas service. We shall send engineers overseas for machine installation and commissioning and test
production guide, and also training to the workers of the buyer. And we are ready to give technical support anytime.
A1: The guarantee period of our machine is 12 months after the machine is installed well in the buyer's factory;
Q2: What package do you use for the machine?
A2: Painted the machine with anti-corrosion oil, and then covered it with plastic film, and then packed into a wooden case or fixed onto a wooden pallet as per clients' requirements, or shall be loaded into a container with film packing. After fixing all machines, we will use a drying agent to keep the container inside dry.
Q3: Do you have an instruction manual to guide us if I buy the machine?
A3: Yes, we supply a detailed user manual for your reference. PLS read it carefully for guidance. If there is still a problem that could not be solved, PLS contact us, we are ready to help you anytime.
Q4: What is your service to overseas clients?
A4: We supply perfect overseas service. We shall send engineers overseas for machine installation and commissioning and test
production guide, and also training to the workers of the buyer. And we are ready to give technical support anytime.
Contact Us
Sue
Company: Nanjing Sumino Precision Machinery Co., Ltd
Add: Kaituo Road No.11, Jiangning District, Nanjing, China.
Tel: +86 025-51839686
Fax: +86 025-51839687
Mob: +86 17712413069
Email:suqian@susumino.com
Whatsapp: +86 17712413069
Add: Kaituo Road No.11, Jiangning District, Nanjing, China.
Tel: +86 025-51839686
Fax: +86 025-51839687
Mob: +86 17712413069
Email:suqian@susumino.com
Whatsapp: +86 17712413069
- Condition:
- New
- Plastic Processed:
- PE, PP, PA, HDPE/PP, PE/PP, Lldpe
- Application:
- Film
- Screw Design:
- Single-screw
- Screw Material:
- 38CrMoALA
- Screw diameter (mm):
- 90 mm
- Screw L/D Ratio:
- 25:1
- Screw Speed (rpm):
- 480 rpm
- Showroom Location:
- None
- Place of Origin:
- Jiangsu, China
- Brand Name:
- Sumino
- Voltage:
- 330V or custom made
- Dimension(L*W*H):
- 13000*8300*3200
- Power (kW):
- 110
- Weight:
- 15000 KG
- Warranty:
- 1 Year
- Key Selling Points:
- Automatic
- Applicable Industries:
- Manufacturing Plant
- Video outgoing-inspection:
- Provided
- Warranty of core components:
- 1 Year
- Core Components:
- Bearing, Motor, Pump, Gear, PLC, Pressure vessel, Engine, Gearbox, Screw
- Machinery Test Report:
- Provided
- mechanical Specifications:
- 800-2300mm
- speed of coating film:
- 100-150
- thickness of coating film:
- 0.012~0.1mm
- Effective screw L/D:
- 30:1
- main unwinding diameter:
- 800-1300mm
- Speed of screw:
- 50-150 RPM
- diameter of rewinding:
- 800-1300mm
- Dimensions:
- 13000*8300*3200
- Gross weight:
- AROUND 10 TONS
- Total Power:
- 150 KW
