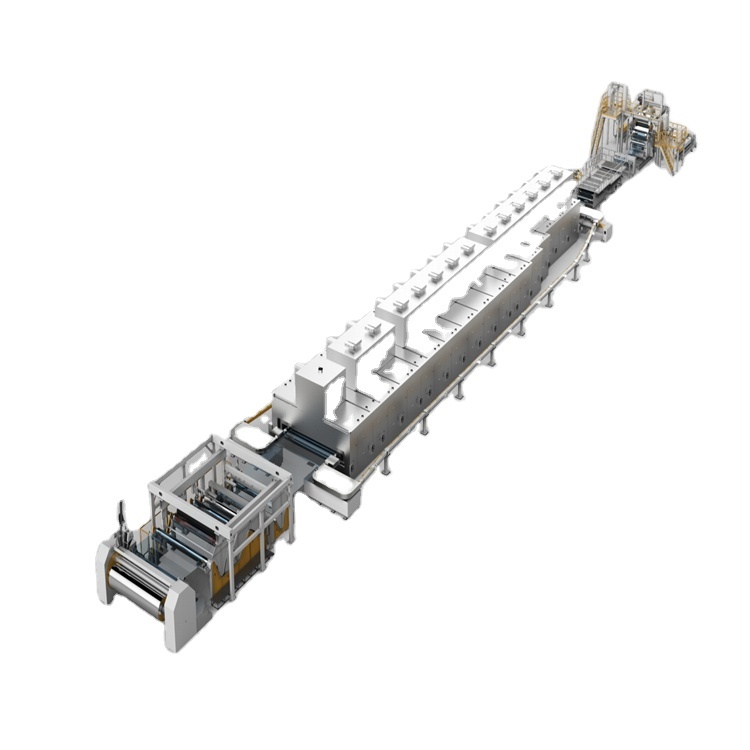

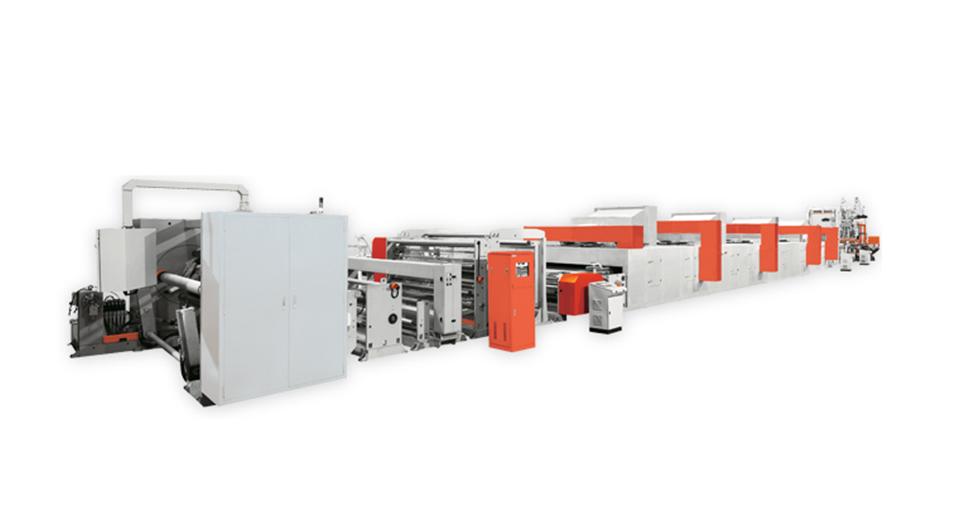

Fully Automatic BOPP film making machine/production line
Products Description
General Overview of Fully Automatic BOPET BOPA BOPLA BOPP film making machine
The biaxially oriented film extrusion line is the result of 5 years of research, development, and manufacturing efforts.
On this extrusion line, raw materials go through various processes including plastification, the addition of chemical agents, and biaxial stretching. The resulting film has a uniform thickness. Its manufacturing technology reaches an internationally advanced level.
The biaxial stretching method has attracted increasing attention from the plastics extrusion industry in recent years. Stretching the in both directions can greatly improve the mechanical property, light transmission, barrier property, thermal
conductivity, and thickness uniformity. A biaxially oriented film production line is designed to meet the need of various
application fields. It is mainly applicable to plastic films that are made of polyester, polypropylene, polyamide acid,
polystyrene, or polyimide.
The biaxially stretched PET film is mainly used to construct the P layer of TPT back sheets. It ranges from 0.20mm to 0.35mm in thickness.
Process Flow
Pre-treatment, extrusion, stretching lengthwise, transverse stretching
BOPLA film falls into the category of eco-friendly, biodegradable plastic film with thicknesses ranging from 0.02 to 0.08mm.
BOPLA film falls into the category of eco-friendly, biodegradable plastic film with thicknesses ranging from 0.02 to 0.08mm.
BOPP and BOPET biaxially stretched films produced by our extrusion line are mainly used in the packaging, printing, and electronic product industries. Their thicknesses are between 0.01mm and 0.06mm.
Type of Plastic Films
PE battery separator PVDF solar cell back sheet Biaxially stretched breathable film with micropores.
Equipment Model | SM1600 | SM3500 | SM5000 |
Product width(mm) | 1100mm | 3000mm | 4600mm |
Production thickness(mm) | 0.02~0.1mm | 0.02mm~0.1mm | 0.02mm~0.1mm |
Production Speed(m/h) | 60~150m | 100~250m | 150~350m |

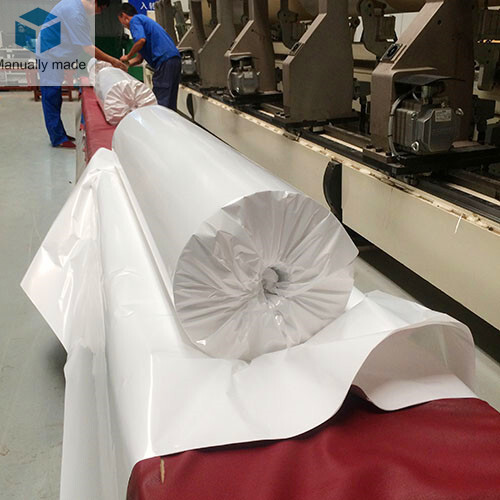

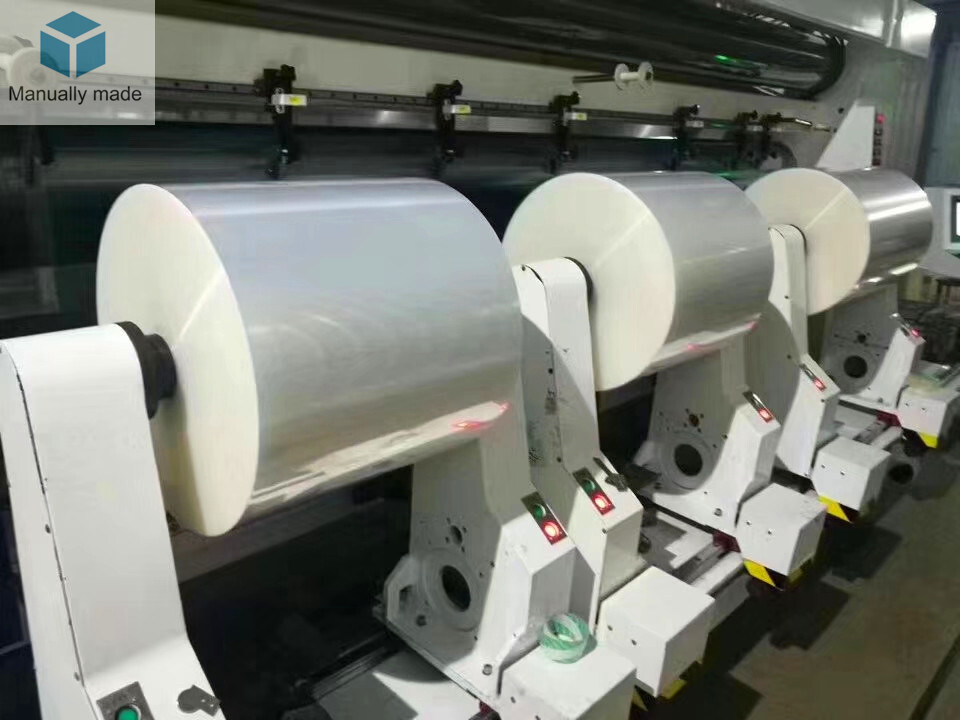

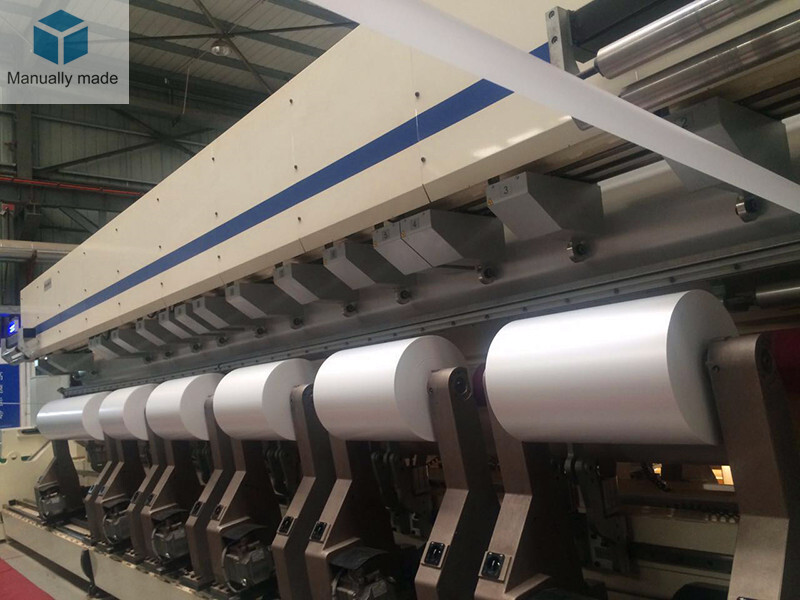

Details Images
Product Application
BOPP PE PP plastic lamination stretch film extruder-making machine imported electrical components. The central control unit mainly adopts the German SIEMENS-CPU-315 series or better than the above; the human-machine interface selects the German SIEMENS-TP270;the temperature control unit adopts the CPU temperature control module; the extruder Siemens Beide's high-performance governor;
The speed of the film machine is imported and controlled by the field bus. The line speed can be adjusted between 0 and 50 m/min.
The high-performance vector speed controller of Siemens Beide is used for winding. The specific parameter setting can be realized by touch screen.
The speed of the film machine is imported and controlled by the field bus. The line speed can be adjusted between 0 and 50 m/min.
The high-performance vector speed controller of Siemens Beide is used for winding. The specific parameter setting can be realized by touch screen.
FAQ
Q1.How can I pay for this order?
A: We can accept all terms of payment, but T/T would be better.
A: We can accept all terms of payment, but T/T would be better.
Q2.What is the delivery time?
A: Within 120 days after receipt of the deposit.
Q3: Are you a factory or trading company?
A: We are a manufacturer.
Q4: How do we do regarding quality control?
A: We have a special QC department in charge of product quality.
Q5: How long is the warranty period?
A: All of our products have one year warranty.
Q3: Are you a factory or trading company?
A: We are a manufacturer.
Q4: How do we do regarding quality control?
A: We have a special QC department in charge of product quality.
Q5: How long is the warranty period?
A: All of our products have one year warranty.
Our Service
Pre-Sales Service
* Provide equipment installation drawings, waterway, line and gas path overall planning..
* The basic positioning installer to go to your company to carry out the basic positioning of the theodolite.
* Arrange the feeding test machine, and the customer will confirm on site
*Arranged the equipment to be sent to the customer's factory.
* The basic positioning installer to go to your company to carry out the basic positioning of the theodolite.
* Arrange the feeding test machine, and the customer will confirm on site
*Arranged the equipment to be sent to the customer's factory.
After-Sales Service
* Guide the customer on how to build their ground and fix the position
*Training how to install the machine, training how to use the machine.
* Inspect the final products together with the customer
*Training how to install the machine, training how to use the machine.
* Inspect the final products together with the customer
Contact Us
Company: Nanjing Sumino Extrusion Machinery Co., Ltd
Add: Kaituo Road No.11, Jiangning District, Nanjing, China.
Tel: +86 025-51839686
Fax: +86 025-51839687
Mob: +86 177 1241 3069
Email: suqian@susumino.com
Whatsapp: +86 177 1241 3069
Add: Kaituo Road No.11, Jiangning District, Nanjing, China.
Tel: +86 025-51839686
Fax: +86 025-51839687
Mob: +86 177 1241 3069
Email: suqian@susumino.com
Whatsapp: +86 177 1241 3069
- Condition:
- New
- Plastic Processed:
- PE, PP, PA, PET, HDPE/PP
- Application:
- Film
- Screw Design:
- Single-screw
- Screw Material:
- 38CrMoALA
- Screw diameter (mm):
- 180 mm
- Screw L/D Ratio:
- 36:1
- Screw Speed (rpm):
- 65 rpm
- Showroom Location:
- None
- Place of Origin:
- Jiangsu, China
- Brand Name:
- Sumino
- Voltage:
- 380V 3P 50Hz or customer's requirement
- Dimension(L*W*H):
- According to the actual condition
- Power (kW):
- 300
- Weight:
- 60000 KG
- Warranty:
- 1 Year
- Key Selling Points:
- Remote Control
- Applicable Industries:
- Manufacturing Plant, Food & Beverage Factory, Food & Beverage Shops
- Video outgoing-inspection:
- Provided
- Warranty of core components:
- 1 Year
- Core Components:
- Bearing, Motor, Pump, PLC, Pressure vessel, Engine, Gearbox, Screw
- Machinery Test Report:
- Provided
- Name:
- BOPP film making machine machinery professional Manufacturer
- Usage:
- Plastic Extrusion
- Final product:
- plastic film
- Motor:
- ABB
- PLC:
- SIEMENS
- Control:
- PLC+Touch Screen
- Product width:
- 1400-1800mm
- Processed Material:
- PP PE
- Color:
- Customer Choice
- Keywords:
- BOPP FILM MAKING MACHINE
- Marketing Type:
- New Product 2020
