Sumino Plastic Extrusion Machinery
Hot Sale 1000mm disposable TPE embossed gloves/PE glove making machine
Products Description
General Overview of 1000MM disposable TPE embossed gloves / PE glove-making machine

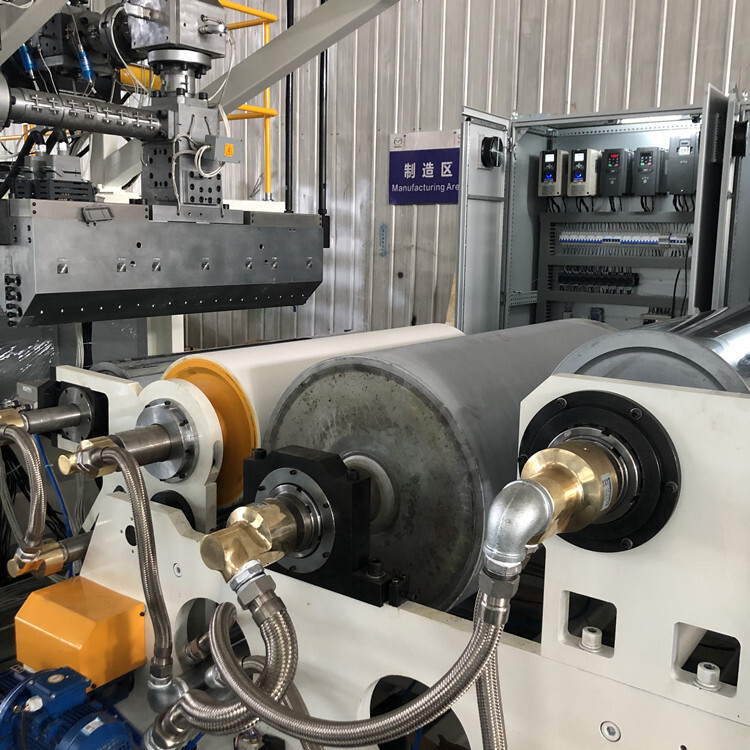

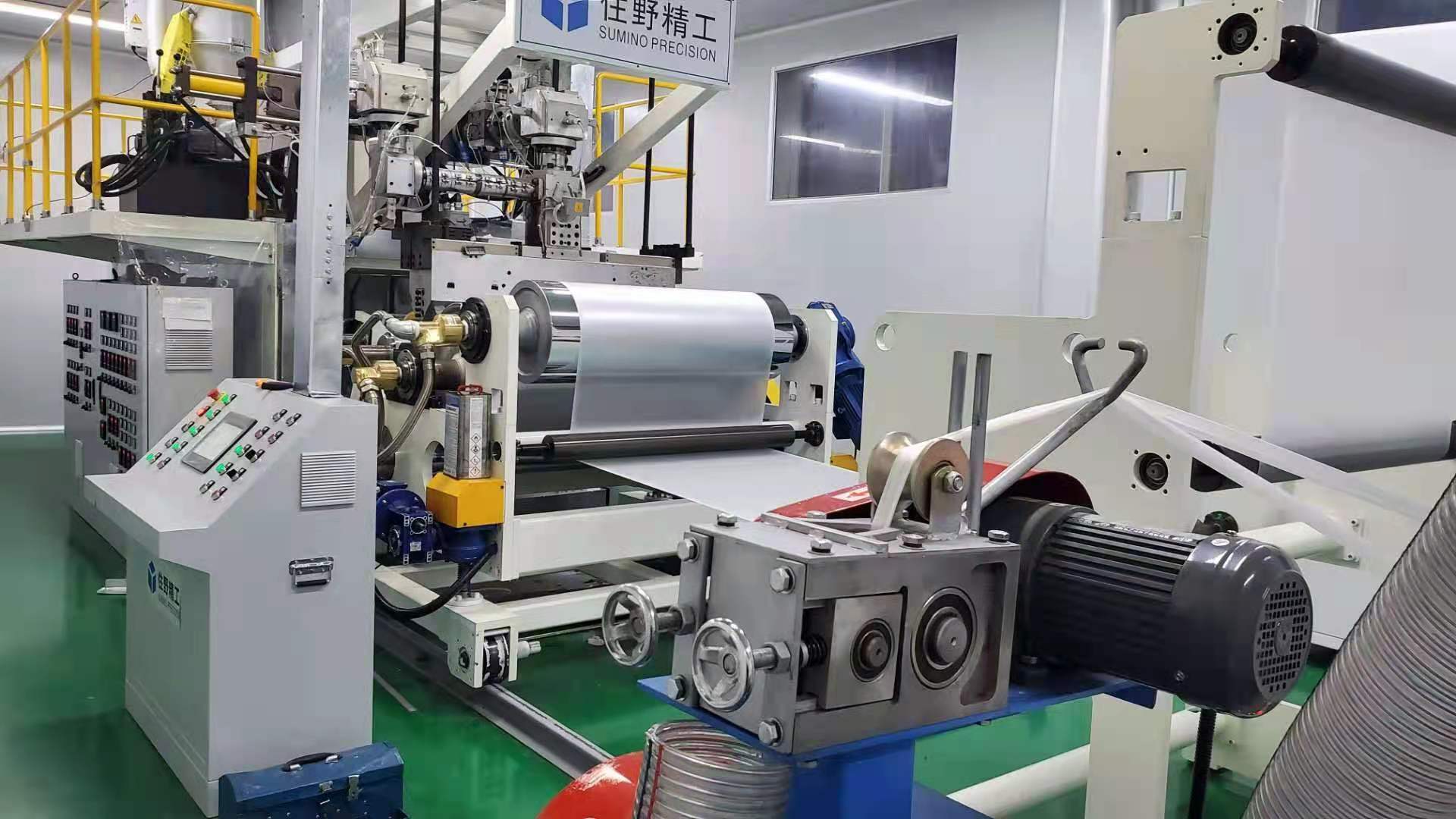

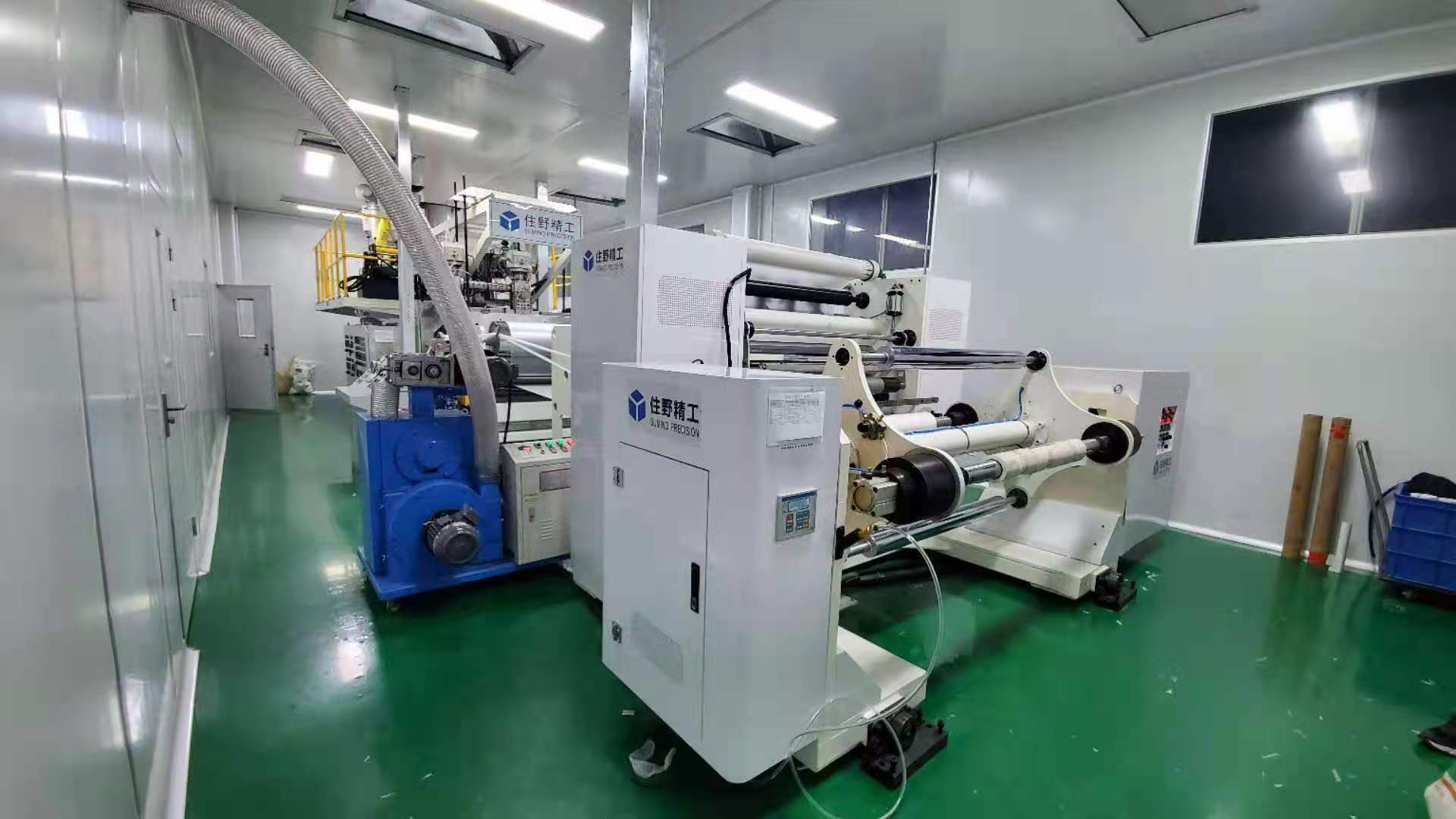

The first step: TPE FILM co-extrusion machinery
| Model: | 1000mm-SJφ80mm-SJφ60mm |
| Product structure: | (2 types) double layers structure |
| Product thickness: | 0.05-0.10mm |
| Final product width: | 800mm |
| Adapt to materials: | TPE |
| Maximum extrusion volume: | 200Kg/h |
| Installation capacity: | 150KW |
| Production energy consumption: | 80KW/h |
| Machine weight: | About 10 tons |
| Rewinding load-bearing design: | 500Kg |
| Maximum mechanical line speed: | 5-60m/min |
Applications:
This machine uses LDPE and TPE to produce casting stretch film(could produce one-side sticky film and the other side normal), adopting double screws and two hoppers. This co-extrusion stretch film is widely used in packing areas for architecture, auto parts, hardware parts, etc.
The Second Step: making a glove shape.
1. It adopts the microcomputer contact screen to control, a three-phase mixing motor to pull material, and producing piece numbers can be set up freely.
2. It is suitable for all kinds of molds, easy operation.
3. It is suitable for producing HDPE and LDPE film into the glove, which is widely used in the medical, restaurant, and food filed for its convenience and healthy.
2. It is suitable for all kinds of molds, easy operation.
3. It is suitable for producing HDPE and LDPE film into the glove, which is widely used in the medical, restaurant, and food filed for its convenience and healthy.
Contact Us
Sue
Add: Kaituo Road No.11, Jiangning Distract, Nanjing, China.
Tel: +86 025-51839686
Fax: +86 025-51839687
Mob: +86 177 1241 3069
Email: suqian@susumino.com
Wechat/Whatsapp: +86 177 1241 3069
Tel: +86 025-51839686
Fax: +86 025-51839687
Mob: +86 177 1241 3069
Email: suqian@susumino.com
Wechat/Whatsapp: +86 177 1241 3069
- Condition:
- New
- Plastic Processed:
- PE, PP, Lldpe, LDPE, TPE
- Application:
- Film
- Screw Design:
- Single-screw
- Screw Material:
- 38CrMoAlA
- Screw diameter (mm):
- 80
- Screw L/D Ratio:
- 30:1
- Screw Speed (rpm):
- 1480 rpm
- Showroom Location:
- None
- Place of Origin:
- Jiangsu, China
- Brand Name:
- SUMINO
- Voltage:
- 380V 50HZ 3P, or customized
- Dimension(L*W*H):
- 15*6*3 m
- Power (kW):
- 150
- Weight:
- 15 KG
- Warranty:
- 1 Year
- Key Selling Points:
- Automatic
- Applicable Industries:
- Manufacturing Plant
- Video outgoing-inspection:
- Provided
- Warranty of core components:
- 1 Year
- Core Components:
- Motor, Pump, Gear, PLC, Gearbox, Screw, Motor, Pump, PLC, Gearbox
- Machinery Test Report:
- Provided
- Name:
- 1000MM disposable TPE embossed gloves / PE glove making machine
- OEM:
- Offer
- Final product:
- disposable gloves
- Deliver:
- 90 days
- Control:
- PLC
- Power:
- 150kw
- Maximum mechanical line speed:
- 5-60m/min
- Product thickness:
- 0.05-0.10mm
- Production energy consumption:
- 80KW/h
- Marketing Type:
- New Product 2020
