SUMINO
PP hollow grid corrugated sheet making machine
stars, based on 0reviews
Products Description

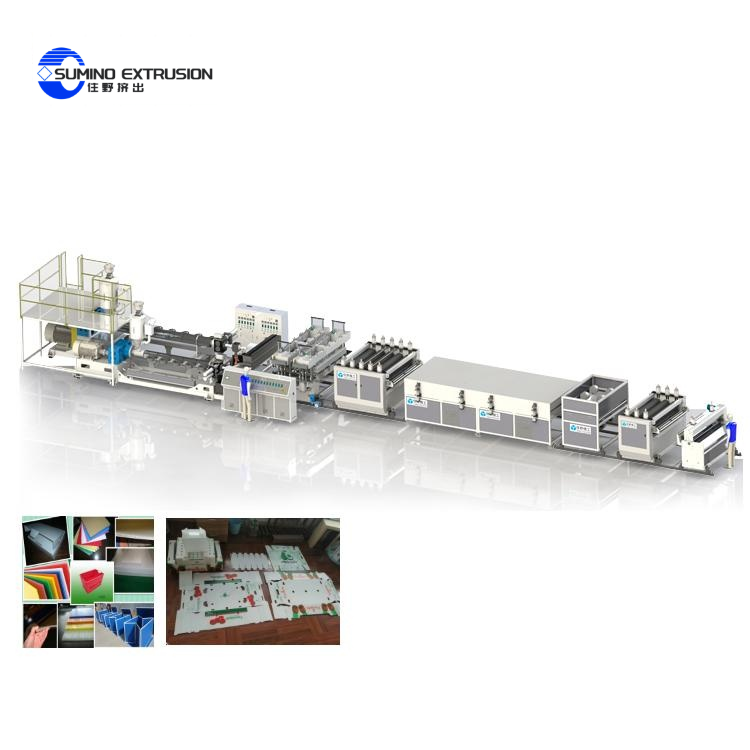

General Overview of Recycling PP hollow grid corrugated sheet making machine
Key Parts Recycling PP PC hollow profile board sheet extrusion-making machine
1. Extruderpp hollow profile sheet corrugating machine/extrusion line
Specially designed extruder screws and advanced temperature control systems retain the plastic properties of the polycarbonate resin while ensuring extrusion efficiency. High energy efficiency is a major benefit of this PC sheet extruder. The extruder motor consumes 20% less power than an equivalent motor made by our competitors.
2. Extrusion Die Recycling PP PC hollow profile board sheet extrusion-making machine
High-quality alloy extrusion dies lip and choker bar provides uniform pressure drop from die inlet to die lip. Precisely machined die assures good quality of finished extruded sheet.
3. Vacuum Calibration Table Recycling PP PC hollow profile board sheet extrusion-making machine
The thermal convection system of the calibration table features an intersection arrangement that ensures the hot PC resin flow is effectively cooled and the final extrudate achieves the desired shape and accurate dimensions. As far as the shape-forming process is concerned, our multiwall sheet extrusion machinery allows rapid shape formation through sizing and cooling without the need for cold water. It helps save energy and improves efficiency.
4. Dry Vacuum Calibrator Recycling PP PC hollow profile board sheet extrusion-making machine
The vacuum calibrator consists of 2 independent sub-systems, which are equipped with many close-loop vacuum channels.
5. Electrical Control System Recycling PP PC hollow profile board sheet extrusion-making machine
Programmable logic control ensures precise extrusion process parameters and optimized operation features.
1. Extruderpp hollow profile sheet corrugating machine/extrusion line
Specially designed extruder screws and advanced temperature control systems retain the plastic properties of the polycarbonate resin while ensuring extrusion efficiency. High energy efficiency is a major benefit of this PC sheet extruder. The extruder motor consumes 20% less power than an equivalent motor made by our competitors.
2. Extrusion Die Recycling PP PC hollow profile board sheet extrusion-making machine
High-quality alloy extrusion dies lip and choker bar provides uniform pressure drop from die inlet to die lip. Precisely machined die assures good quality of finished extruded sheet.
3. Vacuum Calibration Table Recycling PP PC hollow profile board sheet extrusion-making machine
The thermal convection system of the calibration table features an intersection arrangement that ensures the hot PC resin flow is effectively cooled and the final extrudate achieves the desired shape and accurate dimensions. As far as the shape-forming process is concerned, our multiwall sheet extrusion machinery allows rapid shape formation through sizing and cooling without the need for cold water. It helps save energy and improves efficiency.
4. Dry Vacuum Calibrator Recycling PP PC hollow profile board sheet extrusion-making machine
The vacuum calibrator consists of 2 independent sub-systems, which are equipped with many close-loop vacuum channels.
5. Electrical Control System Recycling PP PC hollow profile board sheet extrusion-making machine
Programmable logic control ensures precise extrusion process parameters and optimized operation features.
Benefits of Recycling PP hollow grid corrugated sheet-making machine
1. Required high production efficiency
2. Production flexibility( controllable sheet thickness and width, for example, you can produce 2-6mm thick sheet with the same mould or machine)
3. Reliability and stability
4. Excellent Adaptability to different raw materials and reach over 30% production cost reduction.
5. Size and shape diversity of finished products
1. Required high production efficiency
2. Production flexibility( controllable sheet thickness and width, for example, you can produce 2-6mm thick sheet with the same mould or machine)
3. Reliability and stability
4. Excellent Adaptability to different raw materials and reach over 30% production cost reduction.
5. Size and shape diversity of finished products
Models
Recycling PP PC hollow profile board sheet extrusion-making machine | 1400 | 1800 | 2300 | 2800 | |||
Max Sheet Width(mm) | 1250 | 1650 | 2150 | 2600 | |||
Sheet Thickness(mm) | 2-6 6-12 12-18 | 2-6 6-12 12-18 | 2-6 6-12 | 2-6 | |||
Line Speed(m/min) | 1-6 2-10 | ||||||
Max Output(kg/h) | 180-260 | 220-350 | 320-450 | 360-500 | |||
Motor Power(KW) | 55-90 | 75-110 | 90-132 | 110-160 | |||
Type of Screw | SM105/36 SM110/36 SM120/36 SM135/36 SM150/36 | ||||||

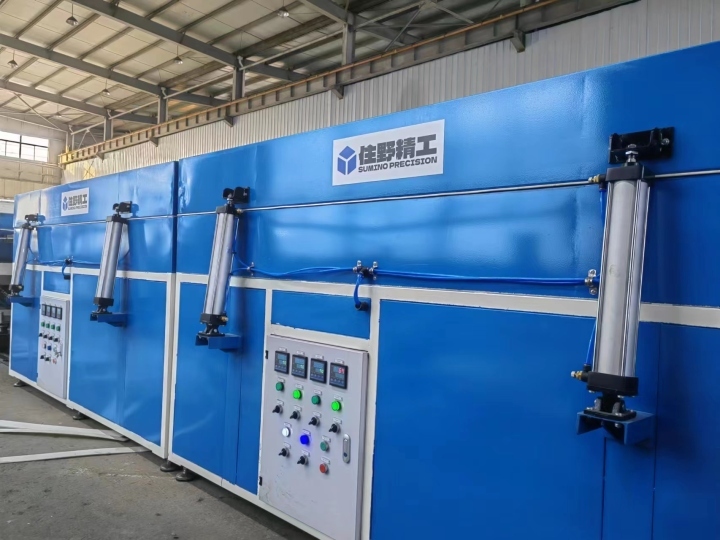

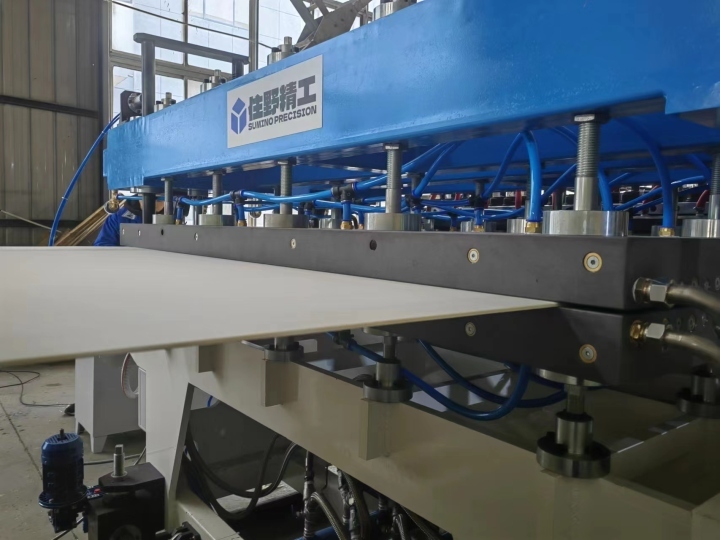

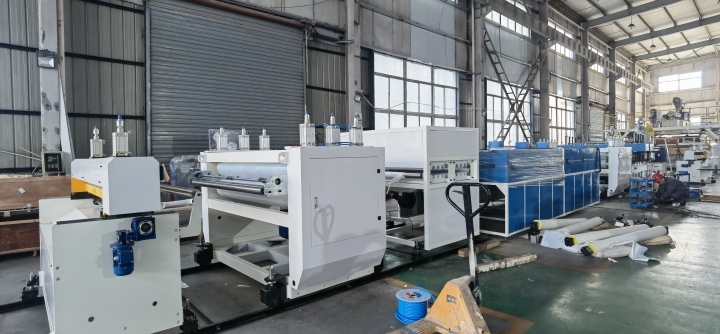

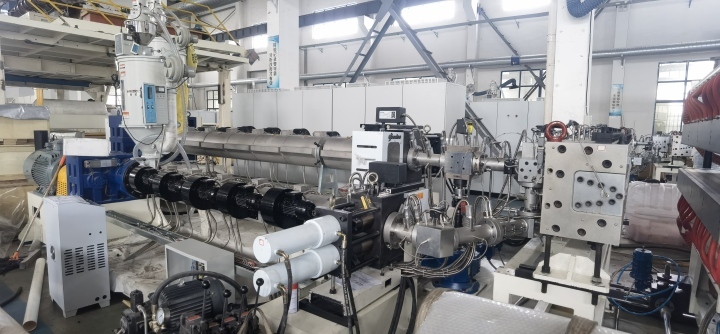

Details Images
Specifications of Recycling PP hollow grid corrugated sheet-making machine
1.Finished board thickness:2-6 6-12 12-18mm(with the same die for the thickness range)
1.Finished board thickness:2-6 6-12 12-18mm(with the same die for the thickness range)
2.Fnished width:1550-2550mm (1400,1800,2300,2700)
3. Output: 400kg/h
4. Line speed:1-10m/min
Product Application
Plastic hollow board, Plastic fluted sheet, Antistatic plastic corrugated sheet, Plastic hollow sheet for electrics bottom protection, PP hollow sheet clapboard, PE hollow board, Plastic advertising display board, Plastic corrugated sheet for bottles layer pallet, PP coroplast sheet, PP carton plast sheet, PP correx sheet, Edge sealing PP corrugated board, PP turnover container box for packaging, PP corrugated packaging box for vegetable export, PP turnover packaging box for asparagus, PP collapsible packaging box for grape, Plastic fire-retarding packaging box, PP packaging box for pesticide, PP hollow sheet backboard for refrigerator and other PP hollow sheet products.
FAQ
Q1.How can I pay for this order?
A: We can accept all terms of payment, but T/T would be better.
A: We can accept all terms of payment, but T/T would be better.
Q2.What is the delivery time?
A: Within 120 days after receipt of the deposit.
Q3: Are you a factory or trading company?
A: We are a manufacturer.
Q4: How do we do regarding quality control?
A: We have a special QC department in charge of product quality.
Q5: How long is the warranty period?
A: All of our products have one year warranty.
Q3: Are you a factory or trading company?
A: We are a manufacturer.
Q4: How do we do regarding quality control?
A: We have a special QC department in charge of product quality.
Q5: How long is the warranty period?
A: All of our products have one year warranty.
Our Service
Pre-Sales Service
* Provide equipment installation drawings, waterway, line, and gas path overall planning..
* The basic positioning installer to go to your company to carry out the basic positioning of the theodolite.
* Arrange the feeding test machine, and the customer will confirm on site
*Arranged the equipment to be sent to the customer's factory.
* The basic positioning installer to go to your company to carry out the basic positioning of the theodolite.
* Arrange the feeding test machine, and the customer will confirm on site
*Arranged the equipment to be sent to the customer's factory.
After-Sales Service
* Guide the customer to how to build their ground and fix the position
*Training how to instal the machine, training how to use the machine.
* Inspect the final products together with customer
*Training how to instal the machine, training how to use the machine.
* Inspect the final products together with customer
Contact Us
Company: Nanjing Sumino Precision Extrusion Machinery Co., Ltd
Add: Kaituo Road No.11, Jiangning District, Nanjing, China.
Tel: +86 025-51839686
Fax: +86 025-51839687
Mob: +86 177 1241 3069
Email: suqian@susumino.com
Whatsapp: +86 177 1241 3069
Add: Kaituo Road No.11, Jiangning District, Nanjing, China.
Tel: +86 025-51839686
Fax: +86 025-51839687
Mob: +86 177 1241 3069
Email: suqian@susumino.com
Whatsapp: +86 177 1241 3069
- Condition:
- New
- Plastic Processed:
- PE, PP
- Application:
- hollow sheet
- Screw Design:
- Single-screw
- Screw Material:
- 38CrMoALA
- Screw diameter (mm):
- 120 mm
- Screw L/D Ratio:
- 30:1
- Screw Speed (rpm):
- 1460 rpm
- Showroom Location:
- None
- Place of Origin:
- Jiangsu, China
- Brand Name:
- Sumino
- Voltage:
- 380V 3P 50Hz or customer's requirement
- Dimension(L*W*H):
- According to the actual condition
- Power (kW):
- 300
- Weight:
- 1000000 KG
- Warranty:
- 1 Year
- Key Selling Points:
- Remote Control
- Applicable Industries:
- Manufacturing Plant, Food & Beverage Factory, Food & Beverage Shops
- Video outgoing-inspection:
- Provided
- Warranty of core components:
- 1 Year
- Core Components:
- Bearing, Motor, Pump, PLC, Pressure vessel, Engine, Gearbox, Screw
- Machinery Test Report:
- Provided
- Name:
- Hot sale pp hollow profile sheet corrugating machine/extrusion line
- Raw material:
- PP granule/Filler/CaCo3/PP recycle/mastetbatch
- Product Width:
- 1800(costomized)
- Motor:
- ABB
- PLC:
- SIEMENS
- Control:
- PLC+Touch Screen
- Product Thickness:
- 2-18mm
- Processed Material:
- PP PE
- Color:
- Customer Choice
- Keywords:
- PP hollow grid corrugated sheet making machine
- Marketing Type:
- New Product 2020
