Stone paper production line stone wall paper/notebook making machine Manufacturer
Products Description

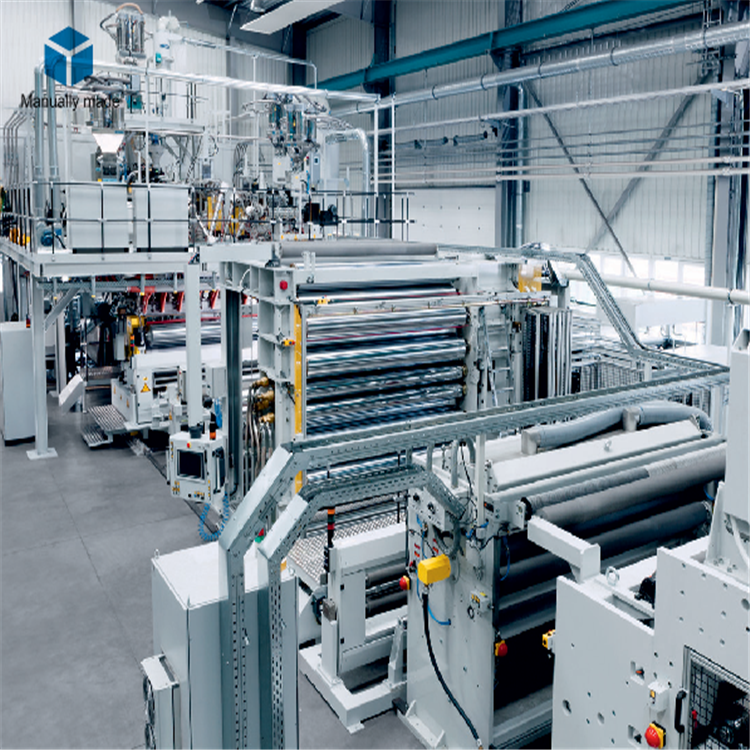

General Overview of Stone paper production line stone wallpaper/notebook making machine
The paper is coated by blowing film, streamer, or calendar, and the coating solution is prepared according to the formula. On the coating machine for coating production, this equipment adopts the method of rotary-type reverse coating, through paper and reverse
formed between the coating roller, coating material feeding roller speed difference, realizes the uniformity and stability of coating adhesion on paper, again after oven to dry, repeat the same action to the coating on paperback, finally the stability of the constant tension winding can be finished stone paper roll.
Step One: Granulating Line
In the high-temperature and high-pressure process environment, calcium carbonate powder, macromolecule materials and a variety of process auxiliaries are fully mixed and milled, and then extruded by screwing.
Step Two: Casting Line
The granules manufactured by the granulating machine are transported to the machine. After heating and strong pushing of the screw, the temperature of the raw material is raised and together with the molten PE material is extruded into a "T" type die to form a three-layer composite sheet material, stretched by a casting roller and adjust the thickness of the product by controlling the speed, and then cooled and shaped by the cooling wheelset, and then flatten, visually inspect, thickness test, and static elimination, then cut off the ear materials and wind up the finished paper.

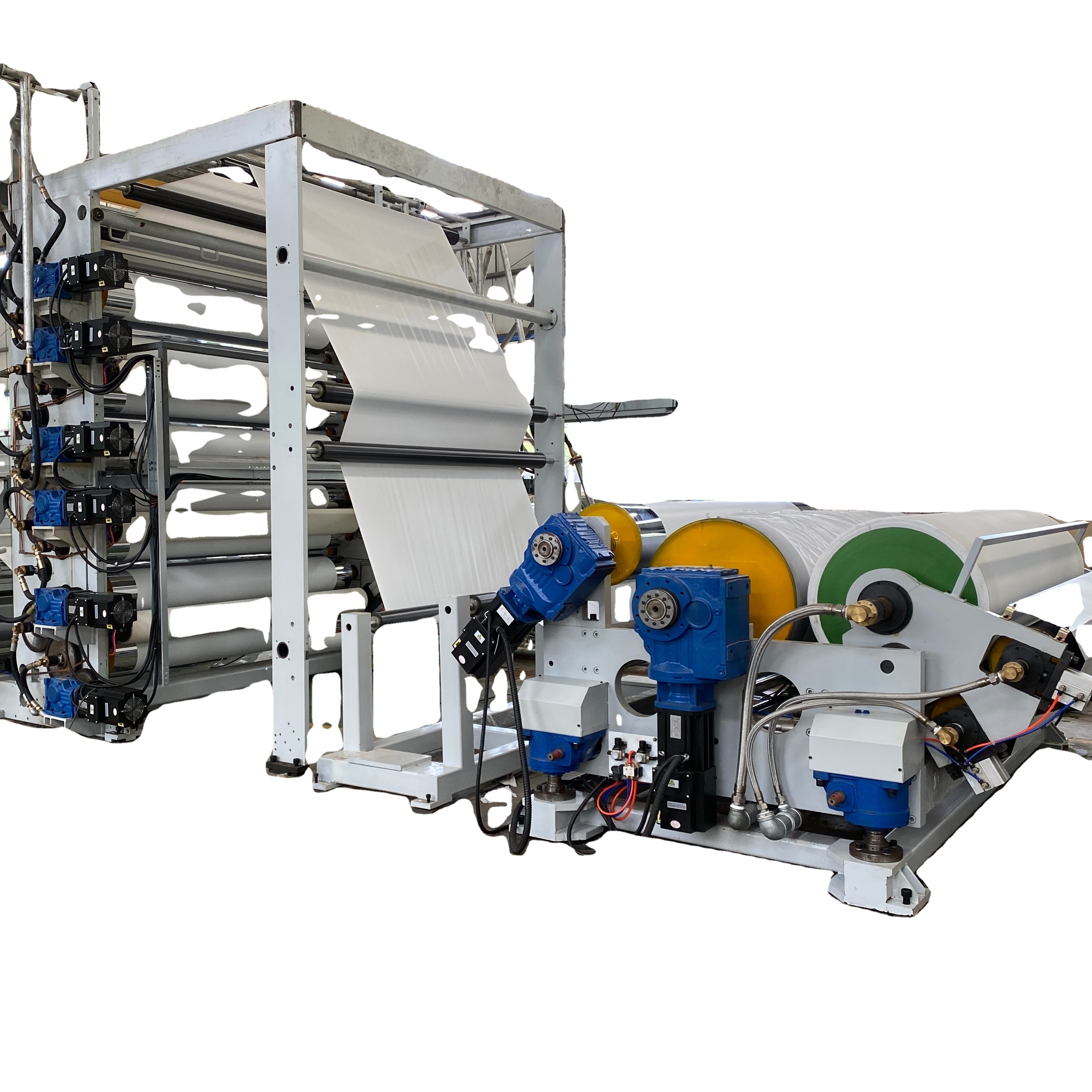

Step Three: Coating Line
The stone paper base paper produced by the casting method is coated, firstly, the coating liquid is prepared according to the formula and then coated and produced on a coater, and the device is coated by a rotary reverse method. By forming reverse velocity difference between the paper surface and coating roll erand coating feeding roller, to achieve uniform coating and stable adhesion to the paper surface. After drying in an oven, repeat the same operation to coat the back side of the paper, and finally stabilize the constant tension. The finished stone paper roll can be obtained by winding it up.
formed between the coating roller, coating material feeding roller speed difference, realizes the uniformity and stability of coating adhesion on paper, again after oven to dry, repeat the same action to the coating on paperback, finally the stability of the constant tension winding can be finished stone paper roll.
Main Components of Stone paper production line Stone wallpaper/notebook making machine
Step One: Granulating Line
In the high-temperature and high-pressure process environment, calcium carbonate powder, macromolecule materials and a variety of process auxiliaries are fully mixed and milled, and then extruded by screwing.
Step Two: Casting Line
The granules manufactured by the granulating machine are transported to the machine. After heating and strong pushing of the screw, the temperature of the raw material is raised and together with the molten PE material is extruded into a "T" type die to form a three-layer composite sheet material, stretched by a casting roller and adjust the thickness of the product by controlling the speed, and then cooled and shaped by the cooling wheelset, and then flatten, visually inspect, thickness test, and static elimination, then cut off the ear materials and wind up the finished paper.
Step Three: Coating Line
The stone paper base paper produced by the casting method is coated, firstly, the coating liquid is prepared according to the formula and then coated and produced on a coater, and the device is coated by a rotary reverse method. By forming reverse velocity difference between the paper surface and coating roll erand coating feeding roller, to achieve uniform coating and stable adhesion to the paper surface. After drying in an oven, repeat the same operation to coat the back side of the paper, and finally stabilize the constant tension. The finished stone paper roll can be obtained by winding it up.
Technical details
1. 130/38 High torque single screw extruder Specification
Material 38CrMoAIA
nitrided thickness 0.5-0.7mm
screw hardness HV≥740
barrel hardness HV≥940
screw diameter 130mm
L/D ratio 38:1
barrel heating method ceramic heating
Screw structure Suitable for olefin polymer
Heating zone 7 zones
heating power around 60KW
cooling methods fan cooling
fan power 0.55KW
barrel cover stainless steel
temperature gauge thermocouple
2. Driving system
Motor type DC motor
Motor power 220KW
gear type helical gear
heat treatment grinding gear
Connection type direct connection( use elastic coupling )
Rotate speed 0-93rpm
3. Venting system
Vacuum pump water ring
Power 11KW
Vacuum tank Double tank, interchangeable
Hopper Stainless steel
1. 130/38 High torque single screw extruder Specification
Material 38CrMoAIA
nitrided thickness 0.5-0.7mm
screw hardness HV≥740
barrel hardness HV≥940
screw diameter 130mm
L/D ratio 38:1
barrel heating method ceramic heating
Screw structure Suitable for olefin polymer
Heating zone 7 zones
heating power around 60KW
cooling methods fan cooling
fan power 0.55KW
barrel cover stainless steel
temperature gauge thermocouple
2. Driving system
Motor type DC motor
Motor power 220KW
gear type helical gear
heat treatment grinding gear
Connection type direct connection( use elastic coupling )
Rotate speed 0-93rpm
3. Venting system
Vacuum pump water ring
Power 11KW
Vacuum tank Double tank, interchangeable
Hopper Stainless steel
Product Application

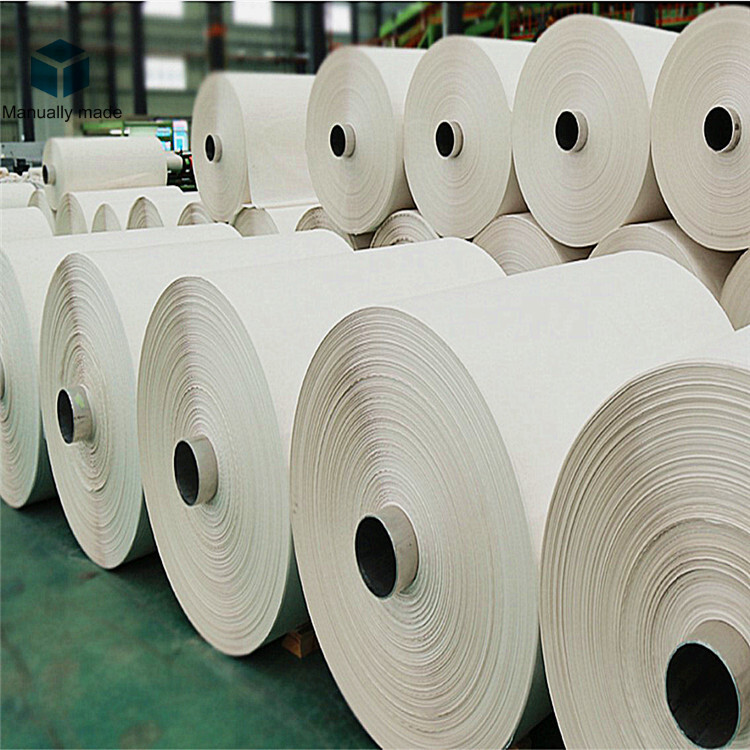

The use of Stone Paper is only limited by your imagination. In addition to its natural bright white color, Stone Paper® has a soft, silky smooth feel.
With its key benefits such as Tear Resistance, Water Proof, Grease Repellent, Fire Resistant, Recyclable, photodegradable, and more, Stone Paper is not only an alternative, but it is THE product that has the lowest impact on our green planet.
With its key benefits such as Tear Resistance, Water Proof, Grease Repellent, Fire Resistant, Recyclable, photodegradable, and more, Stone Paper is not only an alternative, but it is THE product that has the lowest impact on our green planet.
FAQ
Q1.How can I pay for this order?
A: We can accept all terms of payment, but T/T would be better.
A: We can accept all terms of payment, but T/T would be better.
Q2.What is the delivery time?
A: Within 120 days after receipt of the deposit.
Q3: Are you a factory or trading company?
A: We are a manufacturer.
Q4: How do we do regarding quality control?
A: We have a special QC department in charge of product quality.
Q5: How long is the warranty period?
A: All of our products have one year warranty.
Q3: Are you a factory or trading company?
A: We are a manufacturer.
Q4: How do we do regarding quality control?
A: We have a special QC department in charge of product quality.
Q5: How long is the warranty period?
A: All of our products have one year warranty.
Our Service
Pre-Sales Service
* Provide equipment installation drawings, waterway, line, and gas path overall planning.
* The basic positioning installer to go to your company to carry out the basic positioning of the theodolite.
* Arrange the feeding test machine, and the customer will confirm on site
*Arranged the equipment to be sent to the customer's factory.
* The basic positioning installer to go to your company to carry out the basic positioning of the theodolite.
* Arrange the feeding test machine, and the customer will confirm on site
*Arranged the equipment to be sent to the customer's factory.
After-Sales Service
* Guide the customer on how to build their ground and fix the position
*Training how to install the machine, training how to use the machine.
* Inspect the final products together with the customer
*Training how to install the machine, training how to use the machine.
* Inspect the final products together with the customer
Contact Us
Sue
Company: Nanjing Sumino Extrusion Machinery Co., Ltd
Add: Kaituo Road No.11, Jiangning District, Nanjing, China.
Tel: +86 025-51839686
Fax: +86 025-51839687
Mob: +86 177 1241 3069
Email: suqian@susumino.com
Whatsapp: +86 177 1241 3069
Add: Kaituo Road No.11, Jiangning District, Nanjing, China.
Tel: +86 025-51839686
Fax: +86 025-51839687
Mob: +86 177 1241 3069
Email: suqian@susumino.com
Whatsapp: +86 177 1241 3069
- Condition:
- New
- Plastic Processed:
- PE, PP
- Application:
- Film
- Screw Design:
- Single-screw
- Screw Material:
- 38CrMoAIA
- Screw diameter (mm):
- 180 mm
- Screw L/D Ratio:
- 30:1
- Screw Speed (rpm):
- 1400 rpm
- Showroom Location:
- None
- Place of Origin:
- Jiangsu, China
- Brand Name:
- Sumino
- Voltage:
- 380V 3P 50Hz or customer's requirement
- Dimension(L*W*H):
- According to the actual condition
- Power (kW):
- 400
- Weight:
- 100000 KG
- Warranty:
- 1 Year
- Key Selling Points:
- Remote Control
- Applicable Industries:
- Manufacturing Plant, Food & Beverage Factory, Food & Beverage Shops
- Video outgoing-inspection:
- Provided
- Warranty of core components:
- 1 Year
- Core Components:
- Bearing, Motor, Pump, PLC, Pressure vessel, Engine, Gearbox, Screw
- Machinery Test Report:
- Provided
- Name:
- Stone paper production line stone wall paper/notebook making machine
- Raw material:
- PE + CaCo3
- Product Width:
- 1400(costomized)
- Motor:
- ABB
- PLC:
- SIEMENS
- Control:
- PLC+Touch Screen
- Product Thickness:
- 0.15-0.4mm
- Product:
- stone paper materials
- Color:
- Customer Choice
- Keywords:
- Stone paper production line stone wall paper/notebook making machine
- Marketing Type:
- New Product 2020
